LPMS-ME1
LPMS-ME1: Miniature 9-Axis Inertial Measurement Unit (IMU) / AHRS with UART, i2c and SPI Connectivity
NOTE: This is a legacy device. For new applications, please refer to LPMS-BE or contact us.
Description

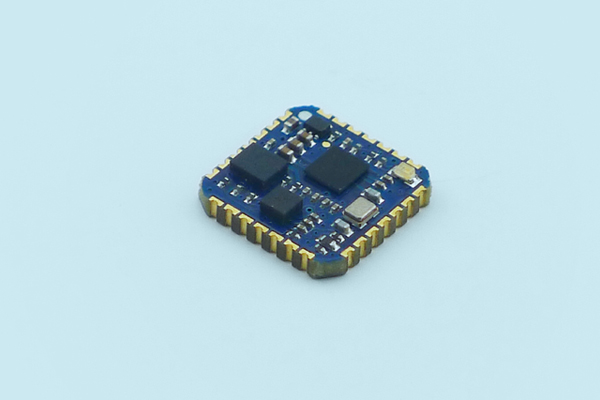

LPMS-ME1 is a high performance miniature inertial measurement unit (IMU) with multiple communication interfaces. Integrating UART, i2c and SPI in the same unit LPMS-ME1 is a perfect fit for both machine and human motion measurement in size- and cost-sensitive applications. LPMS-ME1 is our most small-scale sensor solution, consisting only of a 12-by-12mm multi-layer PCB to be integrated into a user’s design as a surface-mounted component.
The unit contains a 32-bit digital signal processor capable of running all calculations on-board in real-time. For more information on our sensor fusion method please refer to the IMUcore description.

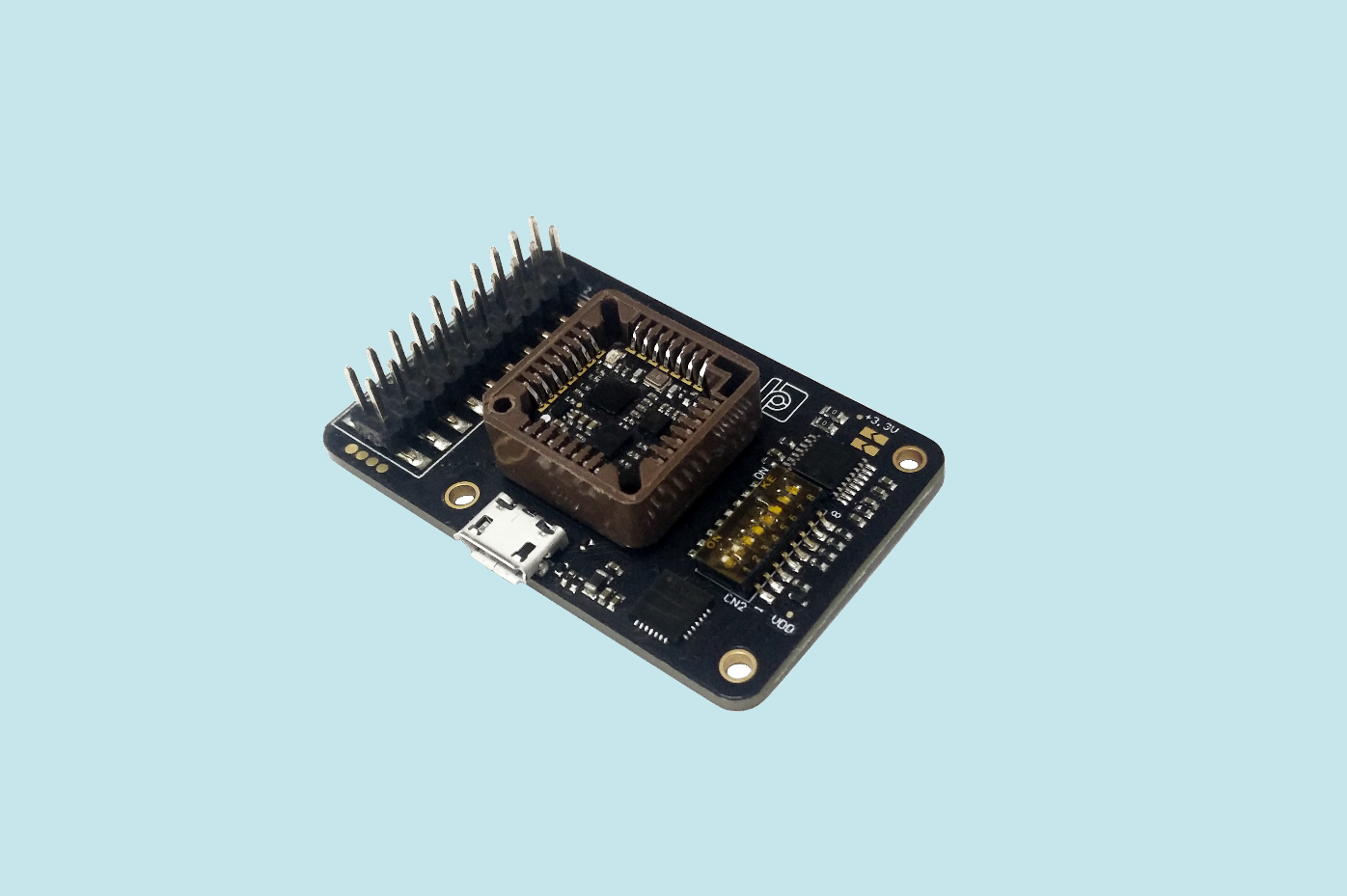

For easy creation of hardware and software designs based on LPMS-ME1, we offer a development kit that can be connected to a PC via USB and allows setting all sensor parameters using our LPMS-Control application. Furthermore, the board has a pin header for convenient access of all relevant sensor pins.
Downloads
Specifications
| Communication interface | UART, I2C, SPI |
|---|---|
| Communication protocol | LpBUS (UART interface) |
| Size | 12 x 12 x 2.6 mm |
| Weight | 0.3g |
| Orientation range | Roll: ±180°; Pitch: ±90°; Yaw: ±180° |
| Resolution | 0.01° |
| Accuracy | < 0.5° (static), < 2° RMS (dynamic) |
| Accelerometer | 3 axes, ±20 / ±40 / ±80 / ±160 m/s2, 16 bits |
| Gyroscope | 3 axes, ±125 / ±245 / ±500 / ±1000 / ±2000 °/s, 16 bits |
| Gyroscope noise density | 0.007 dps/√Hz |
| Static orientation stability | 9 °/hour |
| Magnetometer | 3 axes, ± 4 / ± 8 / ± 12 / ± 16 gauss, 16 bits |
| Data output format | Raw data / Euler angle / Quaternion |
| Data transmission rate | up to 400 Hz |
| Power Consumption(100Hz, UART) | <20mA @ 3.3V |
| Power supply | 3.3 to 5.5V DC |
| Temperature range | – 40 to +80 °C |
| Software | C++ library for Windows, LpmsControl software and Open Motion Analysis Toolkit (OpenMAT) for Windows. |
Order
| Product | Package contents | Price |
|---|---|---|
| LPMS-ME1 | 1 x LPMS-ME1 sensor 1 x User guide card 1 x Warranty service (1 year) | Find a distributor Contact us |
| LPMS-ME1 DK | 1 x LPMS-ME1 sensor 1 x Development kit base board 1 x Warranty & support (1 year) | Find a distributor Contact us |
