Description

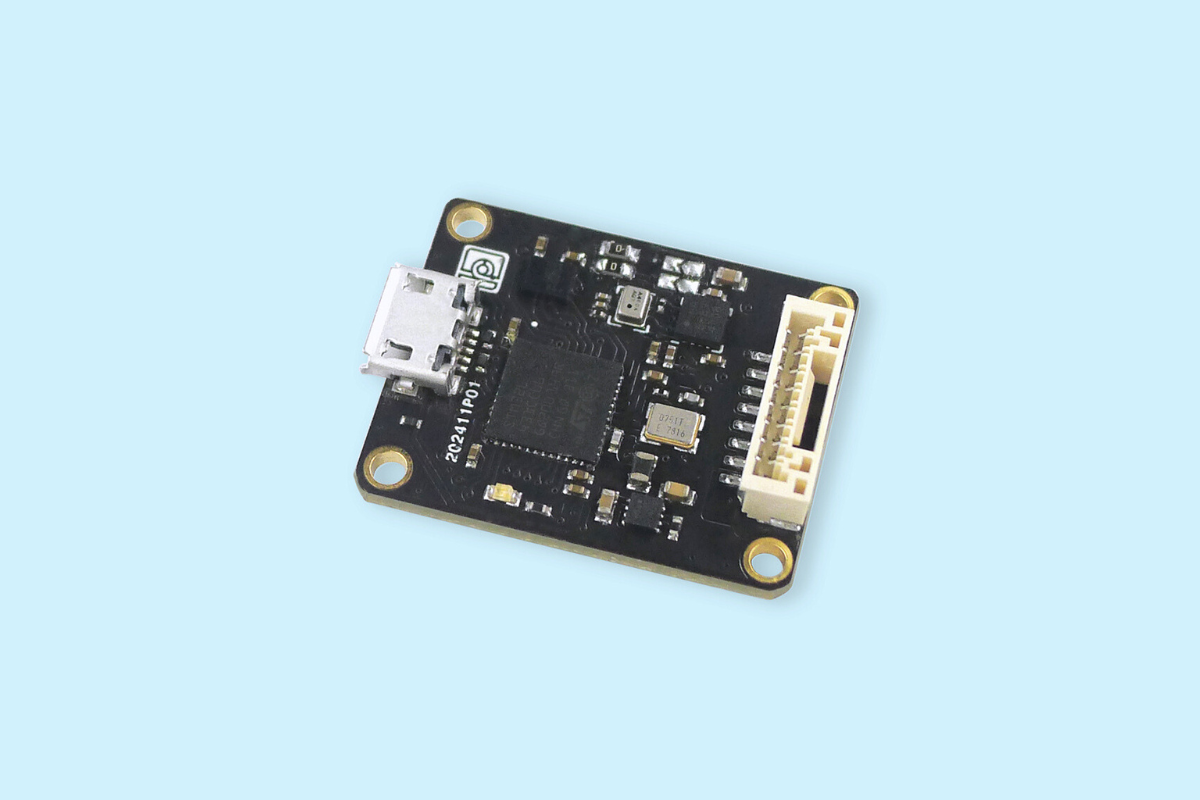

LPMS-CURS3 is a high-performance miniature inertial measurement unit (IMU) with multiple communication interfaces. Integrating CAN Bus, USB and UART, the LPMS-CURS3 is a perfect fit for both machine and human motion measurement in size- and cost-sensitive applications. LPMS-CURS3 is shipped without housing and is ideal for integration with your own device.
Please note that while all versions of LPMS-CURS3 support USB communication, additionally only one (either RS232, TTL serial or CAN bus) interface is supported by the firmware. When ordering please let us know which communication mode you would like to use.
The unit contains a 32-bit digital signal processor capable of running all calculations on-board in real-time. For more information on our sensor fusion method please refer to the IMUcore description.
LPMS-CURS3’s CAN bus interface allows connecting the sensor to a larger CAN bus infrastructure. The sensor supports a minimal CANopen implementation as well as a customizable sequential CAN message format. The amount of measurement data transmitted via CAN bus can be freely configured using the LPMS-Control2 software. Depending on transfer rate settings of the sensor, data rates of up to 500Hz can be achieved.
Downloads
Flyer ( LPMS-CURS3_EN , LPMS-CURS3_JP )
Specifications
| Part Number | LPMS-CURS3-CAN | LPMS-CURS3-RS232 | LPMS-CURS3-TTL |
|---|---|---|---|
| Euler angle range | Roll:±180° ; Pitch:±90° ; Yaw:±180° | ||
| Resolution | 0.01° | ||
| Accuracy | < 0.5° (static), < 2° RMS (dynamic) | ||
| Output data type | Raw data/Euler/Quaternion/Linear acceleration/Air pressure/Temperature | ||
| Internal sampling rate | 500Hz | ||
| Communication interface | CAN Bus | RS232 | TTL(UART) |
| Max. baudrate | 1Mbps | 921600bps | 921600bps |
| Communication protocol | CANOpen / SequentialCAN | LPBUS/ASCII | LPBUS/ASCII |
| Max. data update rate | 500Hz | ||
| Accelerometer range | 3 axes, ±2/±4/±8/±16g, 16bits | ||
| Gyroscope range | 3 axes, ±125/±250/±500/±1000/±2000/±4000°/s, 16bits | ||
| Gyroscope noise density | 0.005dps/√Hz | ||
| Magnetometer range | 3 axes, ±2/±8gauss, 16bits | ||
| Pressure sensor | 300~1100hPa | ||
| Power consumption | <135mW@5V | <110mW@5V | <90mW@5V |
| Working temperature | -20~80°C | ||
| Size | 22x28x7.65 | ||
| Weight | 4g | ||
| Power supply | 5V~18V DC | ||
| Connector | BM08B 1.25mm | Micro USB-B |
Order
| Product | Package contents | Price |
|---|---|---|
| LPMS-CURS3-CAN | 1 x LPMS-CURS3-CAN sensor 1 x Cable (1.27mm pitch connector) 1 x User guide card 1 x Warranty service (1 year) | Order online Find a distributor |
| LPMS-CURS3-RS232 | 1 x LPMS-CURS3-RS232 sensor 1 x Cable (1.27mm pitch connector) 1 x User guide card 1 x Warranty service (1 year) | Order online Find a distributor |
| LPMS-CURS3-TTL | 1 x LPMS-CURS3-TTL sensor 1 x Cable (1.27mm pitch connector) 1 x User guide card 1 x Warranty service (1 year) | Order online Find a distributor |
