LPMS-AL3
LPMS-AL3 Series: 9-Axis Inertial Measurement Unit (IMU) / AHRS with CAN/RS232/TTL/USB Connectivity and IP67-Rated Enclosure
Description
The LP-Research Motion Sensor LPMS-AL3 series is a 9-axis waterproof Inertial Measurement Unit (IMU) / AHRS with multiple connectivity, such as CAN, RS232, TTL and USB. The sensors are designed with a waterproof IP67 enclosure. The sensor units in this 9-axis waterproof IMU series are very versatile, performing accurate, high-speed orientation measurements. By the combination of three separate MEMS sensors (3-axis gyroscope, 3-axis accelerometer and 3-axis magnetometer) low-drift, low-latency orientation data around all three axes is achieved.
Each sensor unit contains a 32-bit digital signal processor capable of running all calculations on-board in real-time. For more information on our sensor fusion method please refer to the IMUcore description.
The sensor’s CAN bus interface allows connecting the sensor to a larger CAN infrastructure. The CAN type sensor supports a subset of the CANopen standard as well as a customizable sequential CAN message format. The amount of measurement data transmitted via CAN bus can be freely configured using the LpmsControl data acquisition software. Depending on transfer rate settings of the sensor, data rates of up to 500Hz can be achieved.
The sensor’s RS232/TTL communication uses either our proprietary LP-BUS protocol or alternatively a plain ASCII output format.
Downloads
Flyer (LPMS-CANAL3, LPMS-RS232AL3, LPMS-TTLAL3)
(LPMS-CANAL3_JP, LPMS-RS232AL3_JP, LPMS-TTLAL3_JP )
Specifications
| Part Number | LPMS-CANAL3 | LPMS-RS232AL3 | LPMS-TTLAL3 |
|---|---|---|---|
| Communication interface | CAN Bus / USB | RS232 | TTL(UART) |
| Max. baud rate | 1Mbps | 921600bps | 921600bps |
| Communication protocol | CANOpen / SequentialCAN | LPBUS/ASCII | LPBUS/ASCII |
| Power consumption | <135mW@5V | <110mW@5V | <90mW@5V |
| Size | 50x42x25mm (latest version) | ||
| Weight | 106.8 (±4) g | ||
| Euler angle range | Roll:±180°; Pitch:±90°; Yaw:±180° | ||
| Resolution | 0.01° | ||
| Accuracy | < 0.5° (static), < 2° RMS (dynamic) | ||
| Max. instant impact (0.1ms) | 10,000g | ||
| Output data type | Raw data/Euler/Quaternion/Linear acceleration/Air pressure/Temperature | ||
| Internal sampling rate | 500Hz | ||
| Max. data update rate | 500Hz | ||
| Accelerometer range | 3 axis, ±2/±4/±8/±16g, 16bits | ||
| Gyroscope range | 3 axis, ±125/±250/±500/±1000/±2000/±4000°/s, 16bits | ||
| Gyroscope noise density | 0.005dps/√Hz | ||
| Magnetometer range | 3 axis, ±2/±8gauss, 16bits | ||
| Working temperature | -20~80°C | ||
| Power supply | 5V ~ 18V DC | ||
| Connector | M12 8 Pin | ||
| Waterproof level | Aluminum alloy, IP67 |
Order
| Product | Package contents | Price |
|---|---|---|

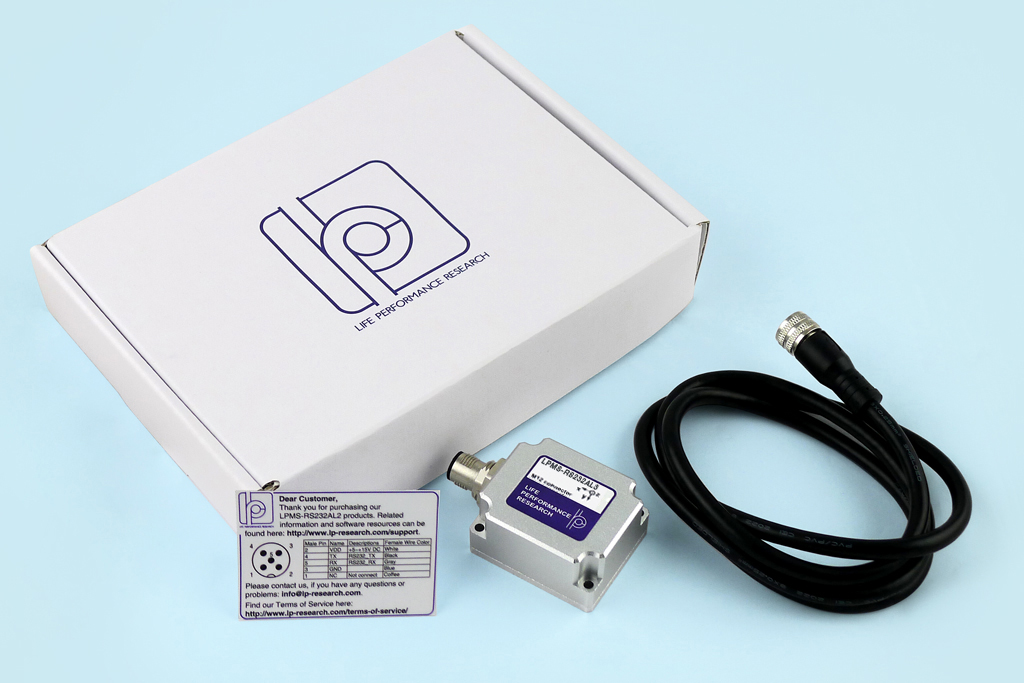

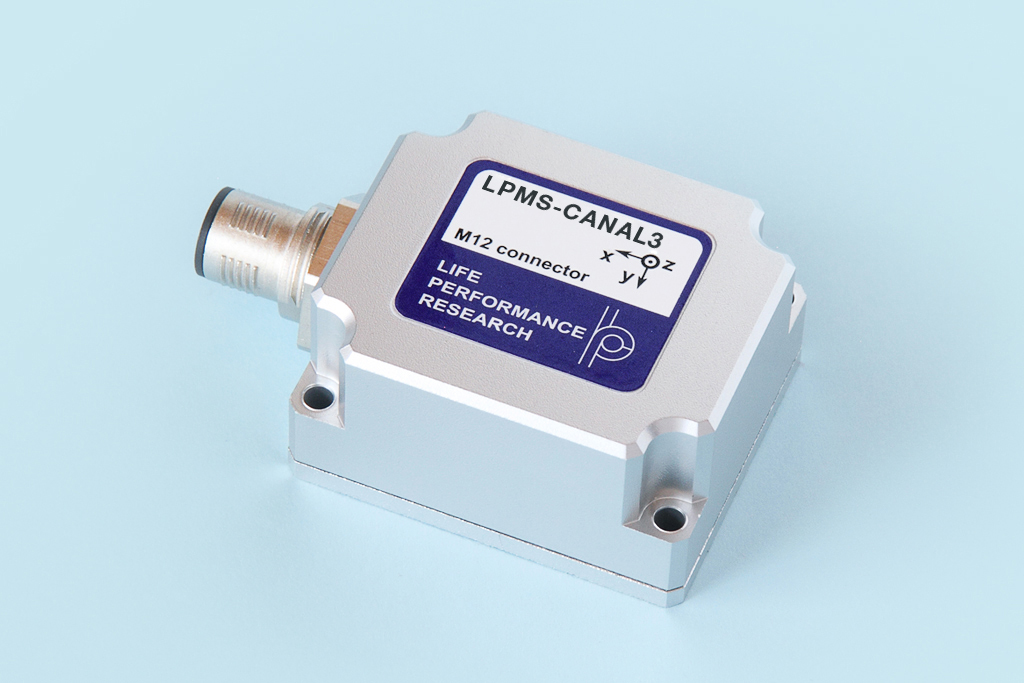

| LPMS-CANAL3 | 1 x LPMS-CANAL3 sensor 1 x Cable (M12 connector to open wires) 1 x User guide card 1 x Warranty service (1 year) | Order online Find a distributor |

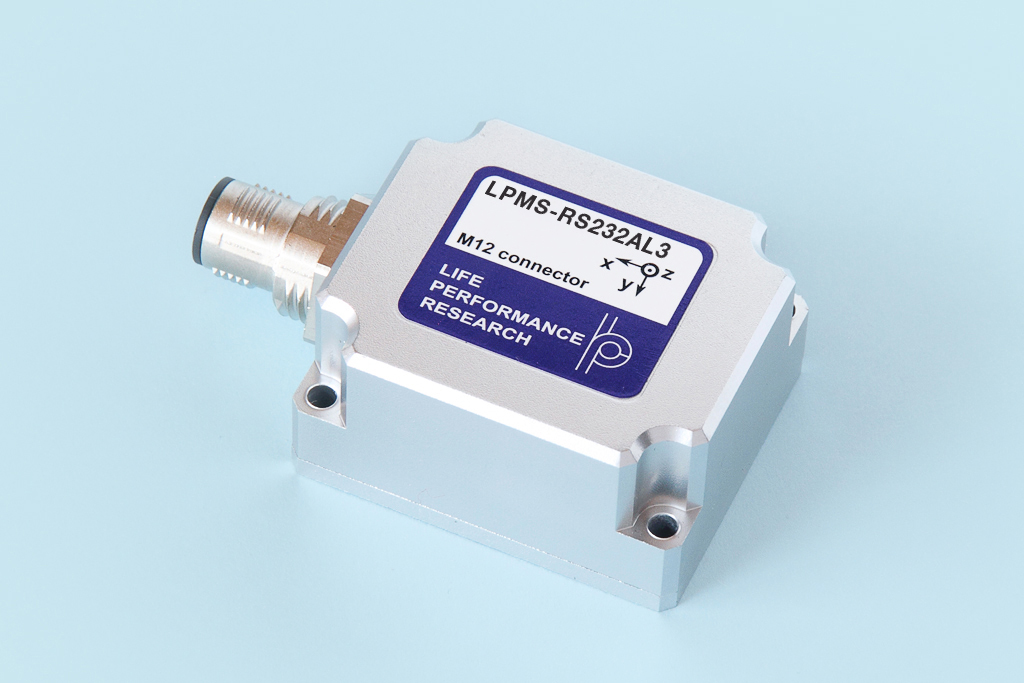

| LPMS-RS232AL3 | 1 x LPMS-RS232AL3 sensor 1 x Cable (M12 connector to open wires) 1 x User guide card 1 x Warranty service (1 year) | Order online Find a distributor |
| LPMS-TTLAL3 | 1 x LPMS-TTLAL3 sensor 1 x Cable (M12 connector to open wires) 1 x User guide card 1 x Warranty service (1 year) | Order online Find a distributor |
