Inertial Measurement Unit (IMU) Devices

LPMS inertial measurement units are capable of fast and accurate 3D orientation sensing. We support a variety of communication interfaces and housing options.

LPMS-B2
  • Wireless interface (Bluetooth 2.1 and BLE 4.1)
  • Maximum transmission rate: 400 Hz
  • Run-time on one battery charge: >6h
  • Raw data, quaternion, Euler angle, linear acceleration and pressure data output
LPMS-USBAL2
  • USB interface
  • Maximum transmission rate: 400 Hz
  • Rugged aluminium housing
  • Raw data, quaternion, Euler angle, linear acceleration and pressure data output
LPMS-CURS2
  • USB, CAN bus, UART interfaces: RS-232 or TTL signals
  • Selectable binary and plain ASCII format output
  • Partial CANopen standard protocol support
  • Raw data, quaternion, Euler angle, linear acceleration and pressure data output
LPMS-CU2
  • CAN bus and USB interface
  • Data synchronization up to 128 units using CAN Bus
  • Partial CANopen standard protocol support
  • Raw data, quaternion, Euler angle, linear acceleration and pressure data output

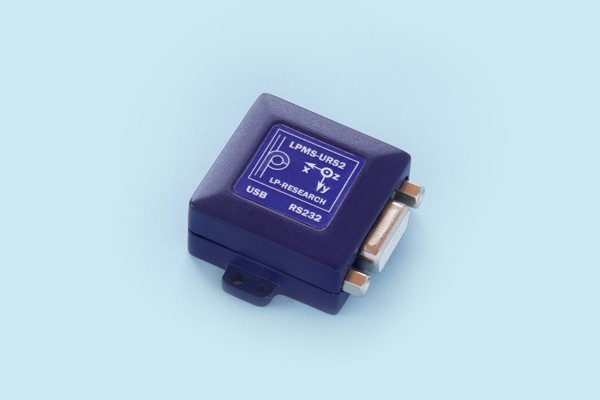

LPMS-URS2
  • USB and RS232 interface
  • Max data update rate: 400Hz
  • Selectable binary and plain ASCII format output
  • Raw data, quaternion, Euler angle, linear acceleration and pressure data output

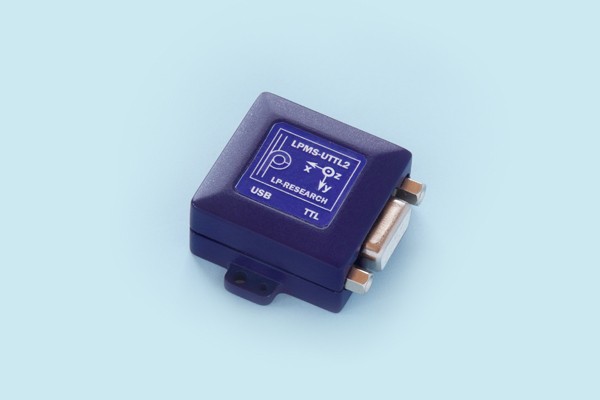

LPMS-UTTL2
  • USB and UART TTL (3.3V) interface
  • Max data update rate: 400Hz
  • Selectable binary and plain ASCII format output
  • Raw data, quaternion, Euler angle, linear acceleration and pressure data output
LPMS-CANAL2
  • CAN bus interface
  • Partial CANopen standard protocol support
  • IP67 rugged aluminium housing
  • Raw data, quaternion, Euler angle, linear acceleration and pressure data output
LPMS-RS232AL2
  • RS232 interface
  • Selectable binary and plain ASCII format output
  • IP67 rugged aluminium housing
  • Raw data, quaternion, Euler angle, linear acceleration and pressure data output
LPMS-ME1
  • Maker edtion (OEM version)
  • UART, I2C and SPI output interfaces
  • Miniaturized size
  • Raw data, quaternion, Euler angle, and linear acceleration output

Previous Versions (EOL)

LPMS-B
  • Wireless (Bluetooth 2) interface
  • Maximum transmission rate: 400 Hz
  • Run-time on one battery charge: 10h
  • Raw data, quaternion, Euler angle, linear acceleration output
  • Optional pressure sensor for altitude output
LPMS-CU
  • CAN bus and USB interface
  • Simultaneous acquisition from up to 128 units
  • Partial CANopen standard protocol support
  • Raw data, quaternion, Euler angle, linear acceleration output
  • Optional pressure sensor for altitude output
LPMS-USBAL
  • USB interface
  • Maximum transmission rate: 400 Hz
  • Rugged aluminium housing (thickness 2mm)
  • Raw data, quaternion, Euler angle, linear acceleration output
  • Optional pressure sensor for altitude output
LPMS-CANAL
  • CAN bus interface
  • Partial CANopen standard protocol support
  • IP67 rugged aluminium housing
  • Raw data, quaternion, Euler angle, linear acceleration output
  • Optional pressure sensor for altitude output
LPMS-UARTAL
  • RS-232 interface
  • Selectable binary and plain ASCII format output
  • IP67 rugged aluminium housing
  • Raw data, quaternion, Euler angle, linear acceleration output
  • Optional pressure sensor for altitude output
LPMS-B OEM
  • Bluetooth 2 interface
  • Maximum transmission rate: 400 Hz
  • Run-time on one battery charge: 10h
  • Raw data, quaternion, Euler angle, linear acceleration output
  • Optional pressure sensor for altitude output
LPMS-CURS OEM
  • USB, CAN bus, TTL-level UART, RS-232 UART interface
  • Selectable binary and plain ASCII format output
  • Partial CANopen standard protocol support
  • Raw data, quaternion, Euler angle, linear acceleration output
  • Optional pressure sensor for altitude output
