LPVR-CAD: Location-based AR/VR Tracking Solution for Immersive 3D Visualization
Overview
LPVR-CAD is a location-based VR tracking system. Consumer virtual reality head mounted display (HMD) systems such as the HTC VIVE or Valve Index support so-called room scale tracking. These systems are able to track head and controller motion of a user not only in a sitting or other stationary position, but support free, room-wide motions.
The volume of this room scale tracking is limited to the capabilities of the specific system, usually covering around 5m x 5m x 3m. Whereas for single user games or applications this space may be sufficient, especially multi-user, location-based VR applications such as arcade-style game setups or enterprise applications require larger tracking volumes.
Optical tracking systems such as ART offer tracking volumes of more than 15m x 15m x 3m. Although the positioning accuracy of optical tracking systems are in the sub-millimeter range, especially orientation measurement is often not sufficient to provide an immersive experience to the user. Image processing and and signal routing may introduce further latencies.

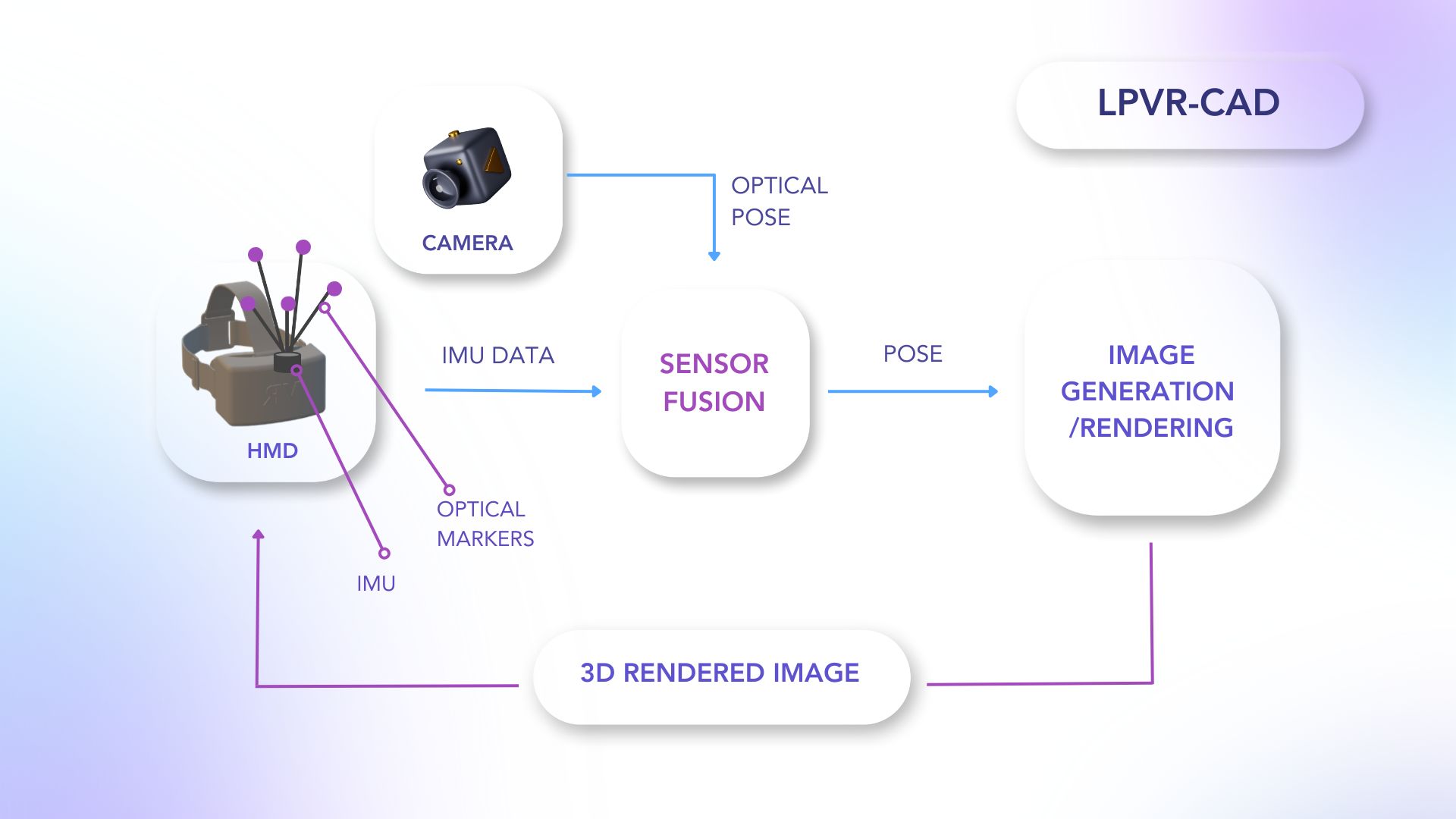

Our location-based AR/VR tracking system solves this problem by combining optical tracking information with inertial measurement data using a special predictive algorithm based on a head motion model.
Supported HMDs
- HTC VIVE / VIVE Pro / Vive Pro 2
- Varjo VR-1 / VR-2 / XR-1
- Valve Index
- Pimax
- Customization to support further devices (Oculus Quest etc.) on request
Specifications
| Product name | LPVR-CAD |
| Compatible HMDs | HTC VIVE Pro (2), Valve Index, Varjo VR-1 / VR-2 / XR-1, Pimax |
| Compatible optical tracking systems | ART, Optitrack, VICON, VRPN-based tracking solutions |
| Compatible software | Unity, Unreal, Autodesk VRED, all SteamVR-compatible applications |
| Controller support | VIVE controller |
| Inertial measurement unit | LPMS-CU2 with VR firmware |
| Position accuracy | 1-10mm (depending on optical tracking setup) |
| Rotation accuracy | 0.2° |
| Tracking latency | Zero latency (using head motion prediction) |
| Tracking space | Unlimited (depending on optical tracking setup) |
| Driver software | OpenVR driver |
| Update rate | 800Hz |
| Operating system | Windows 10 with latest SteamVR environment |

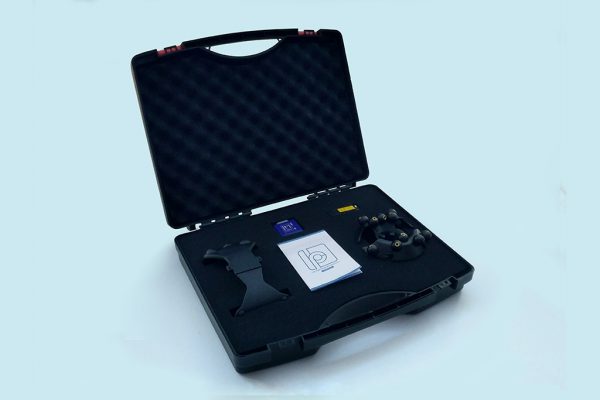

| System components | IMU sensor, HMD marker holder, hand controller marker holder, accessory cables and screws |
| Licensing | License dongle |
Order
| Product | Package contents | Price |
|---|---|---|
| LPVR-CAD | 1 x IMU sensor 1 x HMD marker holder 1 x Hand controller marker holder 1 x Accessory cable and screws 1 x Security dongle |
